Nicrallium TA6V ELI
Grade 23

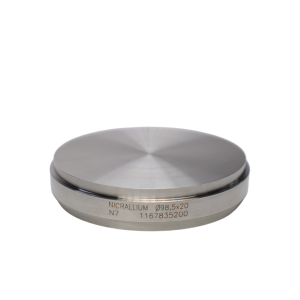

NICRALLIUM® TA6V ELI – Grade 23 discs are made of a non-precious, titanium-based, type 5 machining and casting dental alloy for metal-ceramic restorations.

Product reference : N/A Categories: ,
Clear

Description

NICRALLIUM® TA6V ELI – Grade 23 discs are made of a non-precious, titanium-based, type 5 machining and casting dental alloy for metal-ceramic restorations. This alloy is used for the manufacture of orthopaedic prostheses.

NICRALLIUM® is a registered trademark of our subsidiary : BCS.

Additional information

Diameter

, , ,

Thickness

, , , , , , , , , , , , , , , , , , , , , ,

Product

Chemical composition

Ti
  • 89%
V
  • 4%
Fe
  • <0.25%
Al
  • 6%
Other
  • 0,65%

Mechanical properties

DENSITY
4,5
HARDNESS
330 HV
YIELD STRENGTH UNDER TENSION 0.2%
795 GPA
ULTIMATE TENSILE STRESS
860 GPa
ELONGATION AT BREAK
10%
COEFFICIENT OF THERMAL EXPANSION FROM 20 TO 500°C
9.5 x 10-6
The above values are provided for indication purposes.
